What is a Isothermal well type heat treatment furnace? Introduction to the principle of Forging furnace structure

Isothermal well type heat treatment furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，the advantage is Natural gas is mainly used as fuel, but some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.、Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.、The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion.、It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.、The metal material can be heated to the required temperature in a short time, and the production efficiency is improved.，multifunctional, with functions such as quench, normalizing, heat treatment, Forging heating and temper。The following is to introduce the Isothermal well type heat treatment furnace:

1、Brief introduction of Isothermal well type heat treatment furnace

Isothermal well type heat treatment furnaceIt is a forging heating device using gas as fuel.。

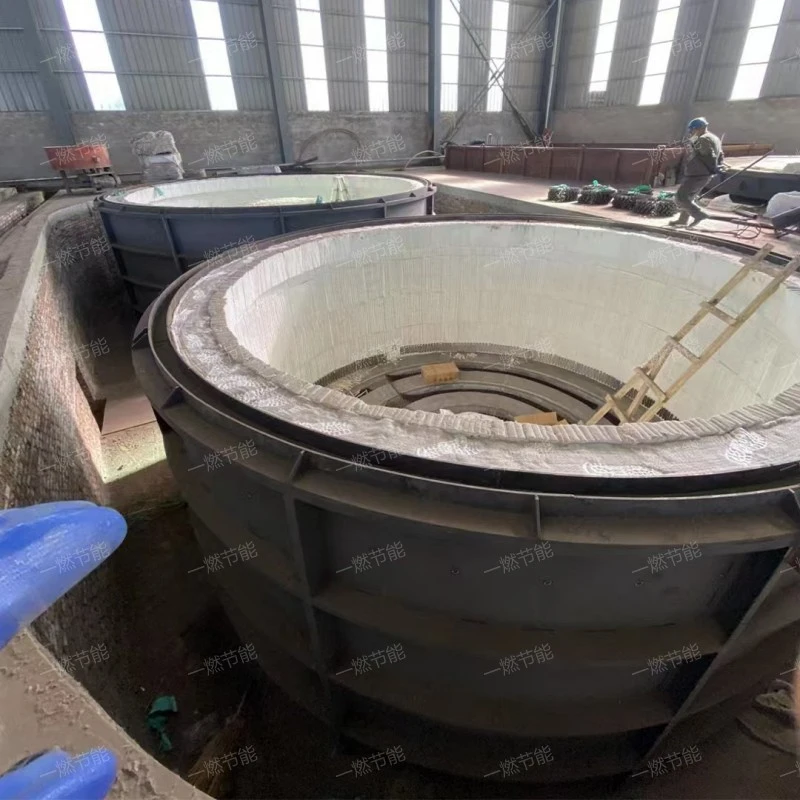

Isothermal well type heat treatment furnace

2、Isothermal well type heat treatment furnace characteristics

The Isothermal well type heat treatment furnace features are as follows:

1. Easy to control

By adjusting the burner and ventilation system, the temperature and atmosphere in the furnace can be accurately controlled to meet the heating requirements of different metal materials.

2. Easy to maintain

The structural design of the Isothermal well type heat treatment furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

3. Efficient heating

The Isothermal well type heat treatment furnace can heat the metal to the required forging temperature in a very short time, reducing the loss caused by the oxidation of the metal.

4. Stable and reliable

The Isothermal well type heat treatment furnace has a stable combustion system and temperature control system, which can ensure the uniformity and stability of the temperature in the furnace, thus improving the quality and production efficiency of forged products.

5. Strong adaptability

The Isothermal well type heat treatment furnace can be used for forging and heating of bar, round steel, square steel, steel plate and other metal materials, and has a wide range of applications.

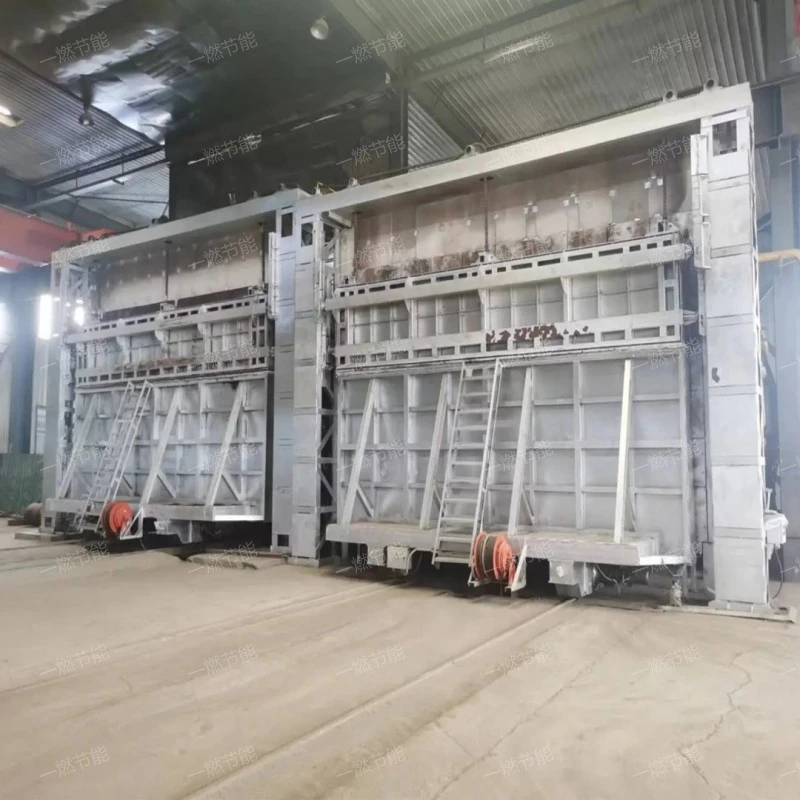

Isothermal well type heat treatment furnace

3、Structural characteristics of Isothermal well type heat treatment furnace

The Isothermal well type heat treatment furnace has the following structure

1. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

2. Radiation chamber

The heat load of the main place for Isothermal well type heat treatment furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

3. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

4. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

5. Waste heat recovery system

Recover the waste heat in the exhaust gas of heating furnace to improve the energy utilization efficiency.

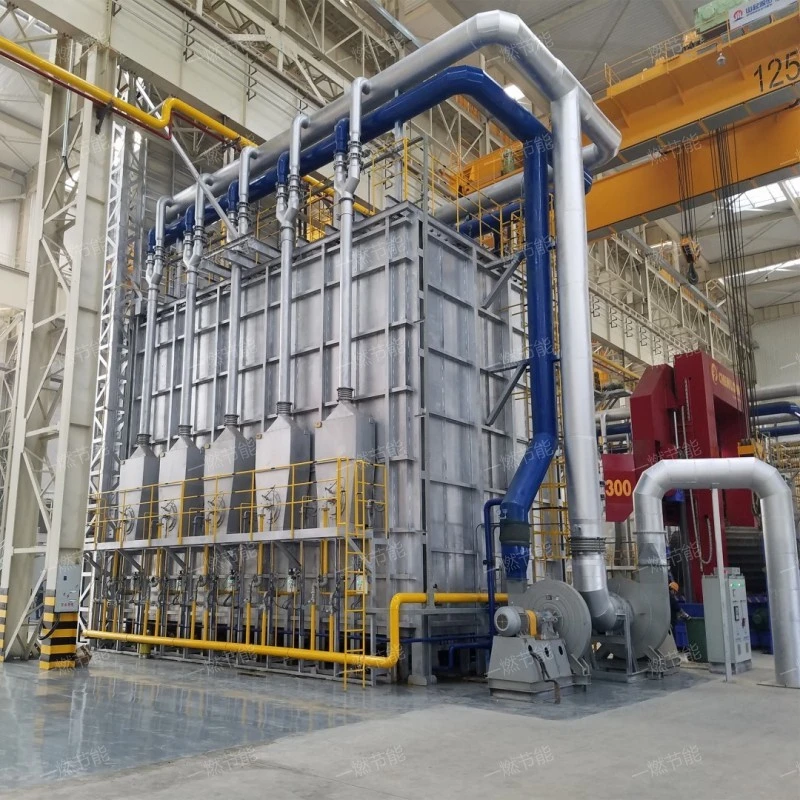

Isothermal well type heat treatment furnace

4、Introduction of advantages of Isothermal well type heat treatment furnace

Isothermal well type heat treatment furnaces have the following advantages.

1. Intelligent control

The Isothermal well type heat treatment furnace is usually equipped with an intelligent control system, which can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.

2. Extend the service life of equipment

The Isothermal well type heat treatment furnace adopts advanced combustion technology and materials, which has a long service life and low maintenance cost.

3. Uniform heating

The Isothermal well type heat treatment furnace adopts regenerative combustion system or advanced burner design, which can realize uniform distribution of temperature in the furnace, ensure uniform heating of metal materials and improve product quality.

4. Extend the service life of equipment

The Isothermal well type heat treatment furnace adopts advanced combustion technology and materials, which has a long service life and low maintenance cost.

5. Efficient combustion

The Isothermal well type heat treatment furnace adopts advanced combustion technology and control system, which can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.

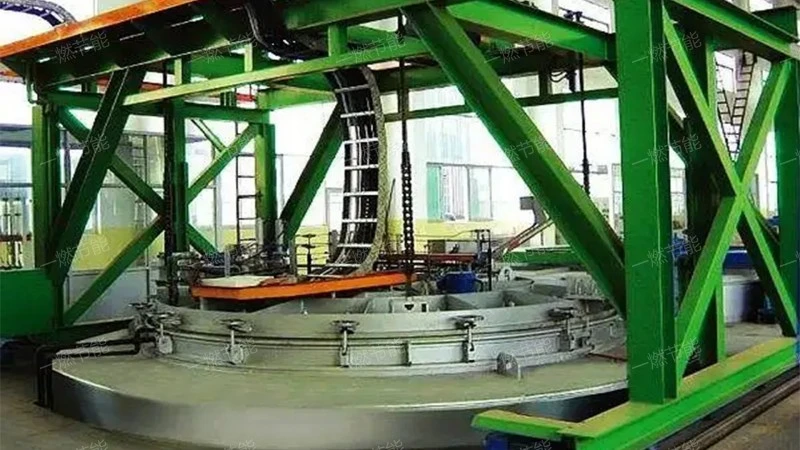

Isothermal well type heat treatment furnace

5、Isothermal well type heat treatment furnace introduction video

On-site aerial photography of Isothermal well type heat treatment furnace。

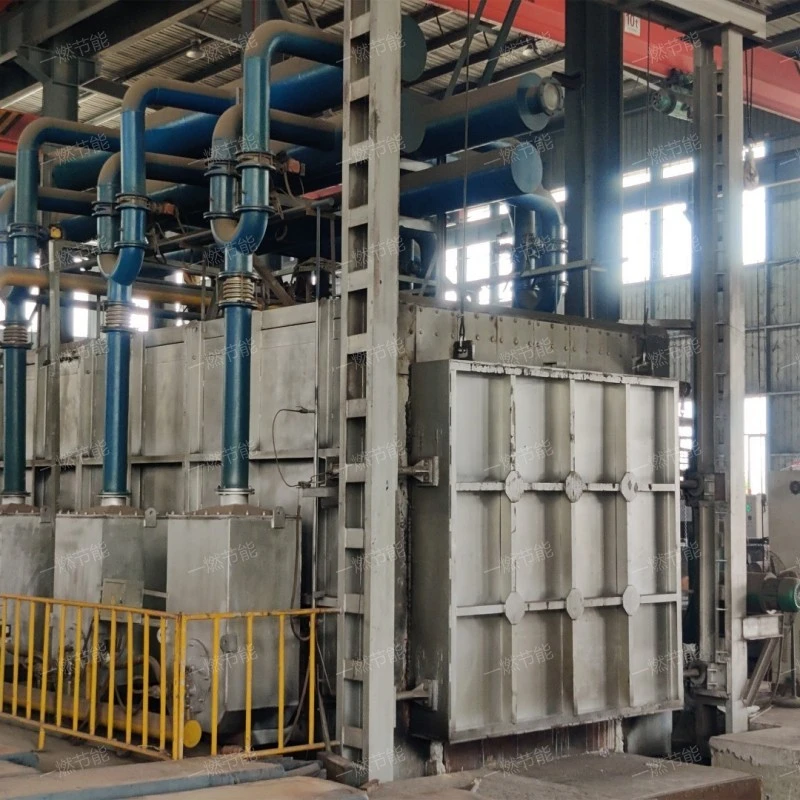

Isothermal well type heat treatment furnace

As you can see from the live video.，Shandong yiran energy-saving environment protection co., ltd it has the functions of quench, Casting heating, normalizing, heat treatment and temper。

Isothermal well type heat treatment furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.、Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.、It has the advantages of high heating efficiency, high energy utilization, accurate temperature control, good environmental protection performance, simple operation and strong adaptability.、Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、Adopting advanced combustion technology and control system can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.，in the course of work,The high-temperature flame and flue gas generated when fuel (natural gas) burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature.。
