Introduction to Low temperature trolley heating furnace and heating furnace structure principle

Low temperature trolley heating furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.。

1、Brief introduction of Low temperature trolley heating furnace

Low temperature trolley heating furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，It has a wide range of uses, and is often used inImprove production efficiency,Metal melting and casting,Energy conservation and environmental protection,Metal forging heating,Improve production efficiency and so on，widely used inelectron,surface treatment,pharmacy,aerospace,material and other industries，be of high quality，favorable price。

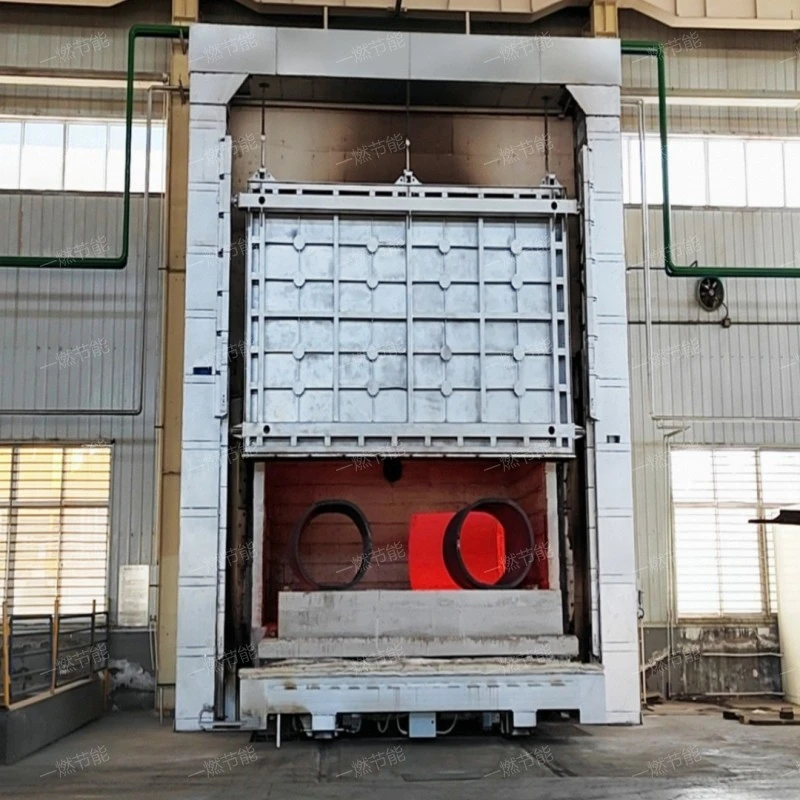

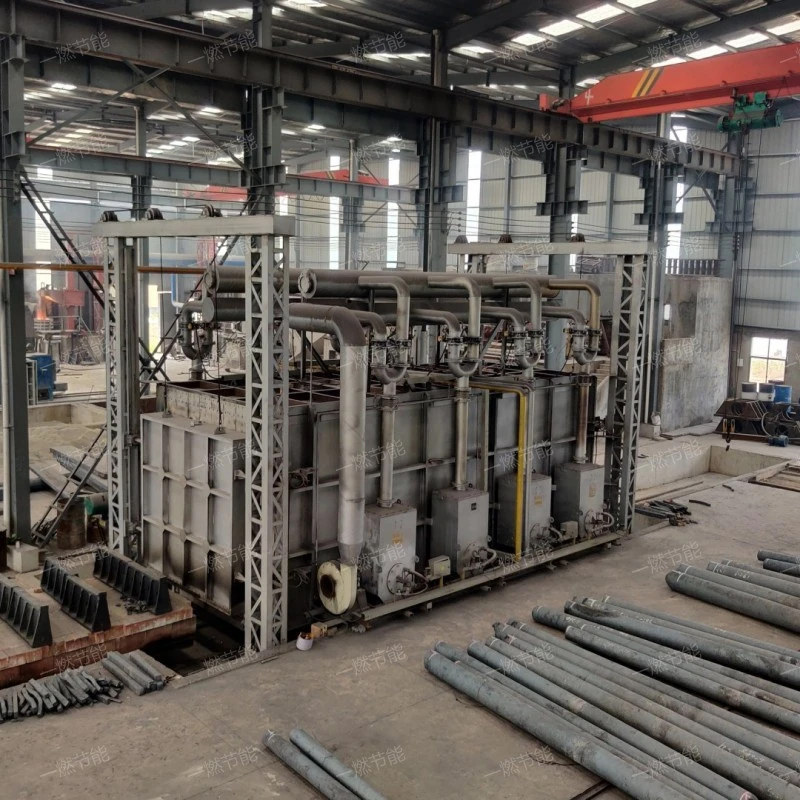

Low temperature trolley heating furnace

2、Introduction of advantages of Low temperature trolley heating furnace

The advantages of Low temperature trolley heating furnace are as follows:

1. Multiple fuel options

Although the Low temperature trolley heating furnace mainly uses natural gas as fuel, some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.

2. Improve product quality

Because the Low temperature trolley heating furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

3. Extend the service life of equipment

The Low temperature trolley heating furnace adopts advanced combustion technology and materials, which has a long service life and low maintenance cost.

4. Reduce operating costs

The efficient combustion and waste heat recovery system of the Low temperature trolley heating furnace can significantly reduce energy consumption, thus reducing operating costs.

5. Rapid temperature rise

The Low temperature trolley heating furnace can heat the metal material to the required temperature in a short time, which improves the production efficiency.

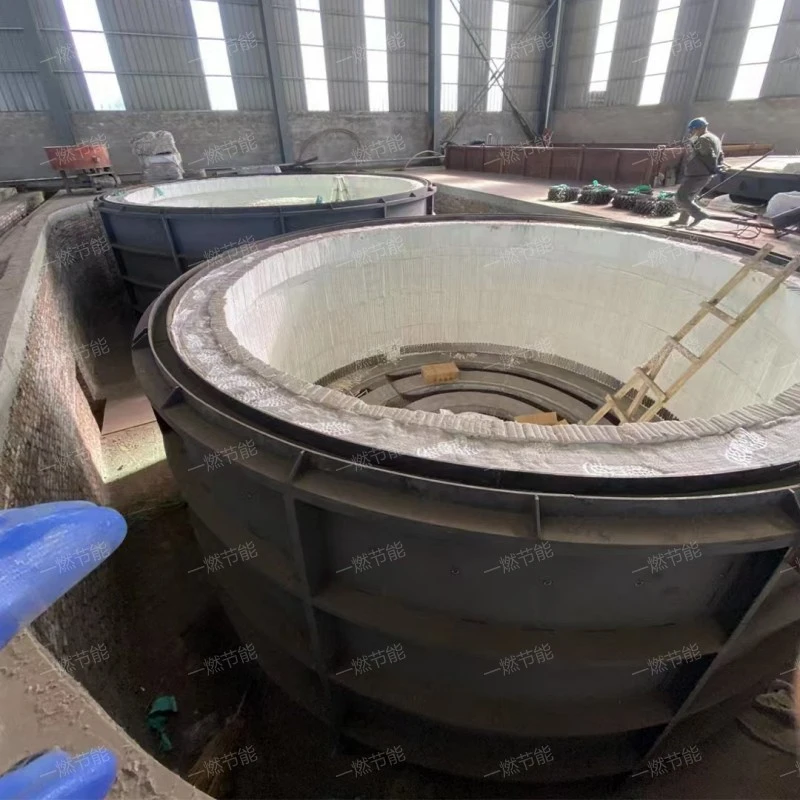

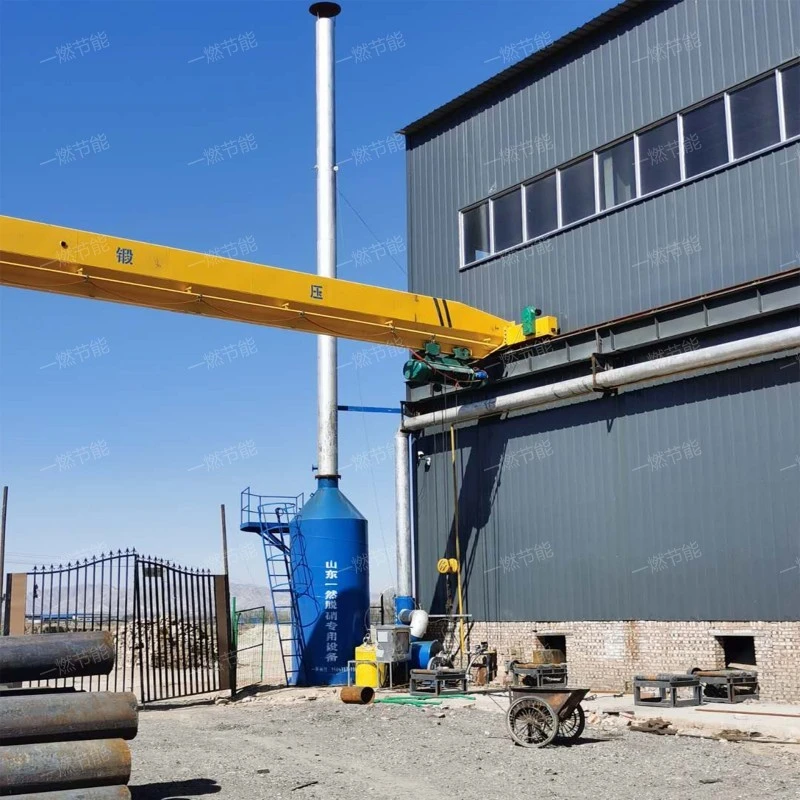

Low temperature trolley heating furnace

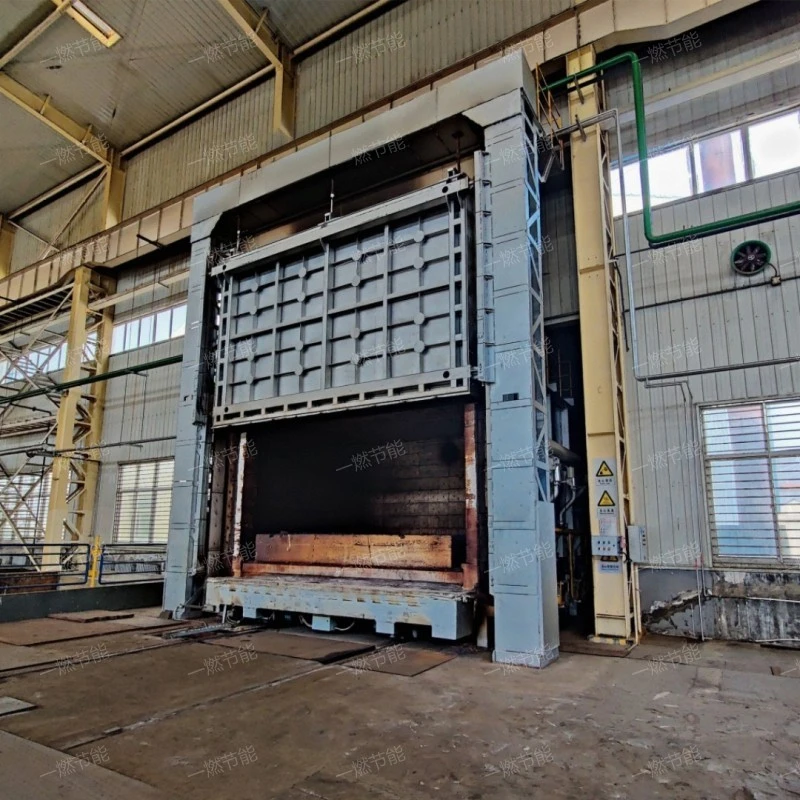

3、On-site real shot of Low temperature trolley heating furnace

Low temperature trolley heating furnace complete specifications and models, the product looks atmospheric.。

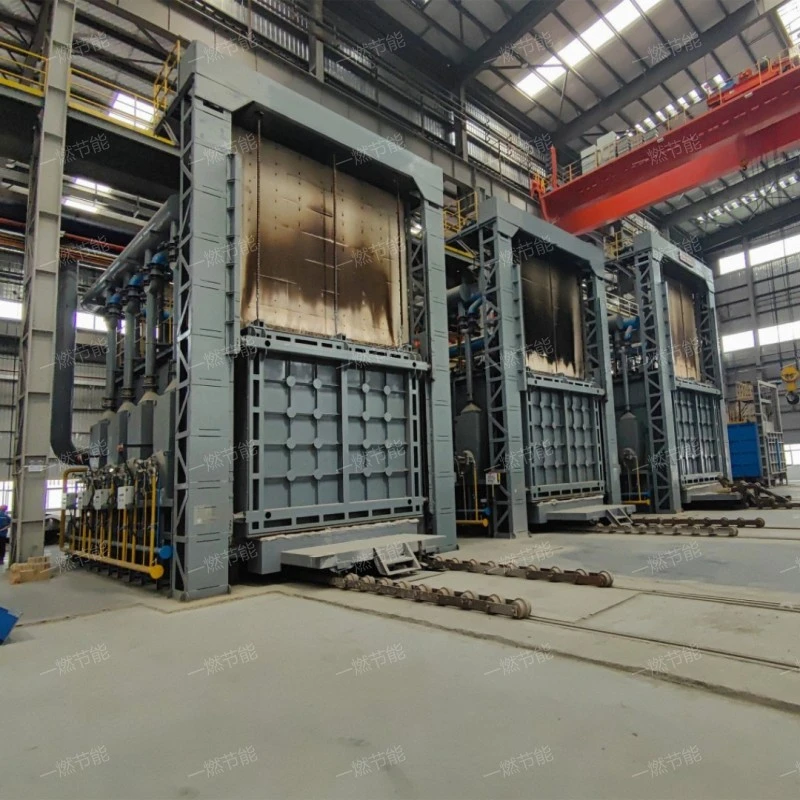

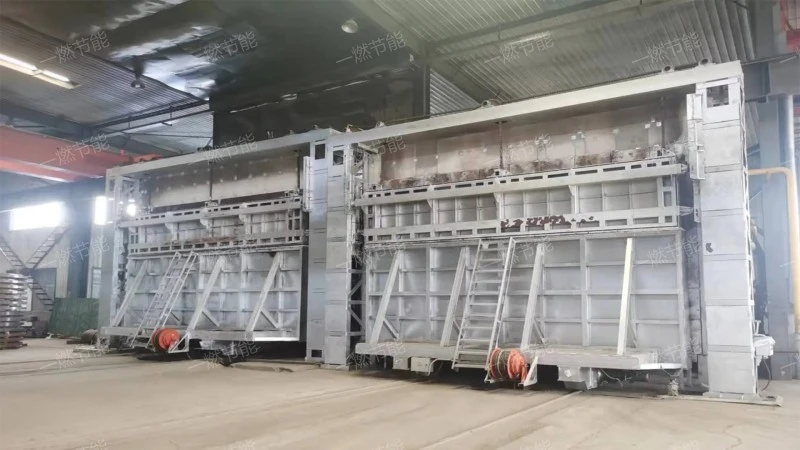

Low temperature trolley heating furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

4、Video analysis of Low temperature trolley heating furnace

Speak directly with facts on the spot。

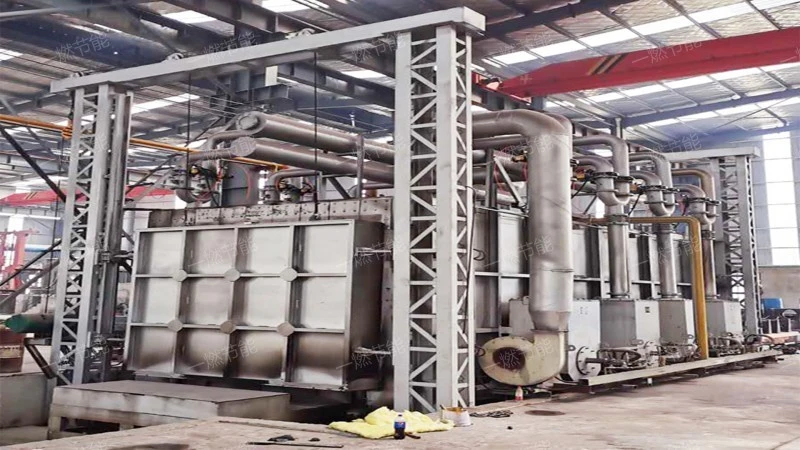

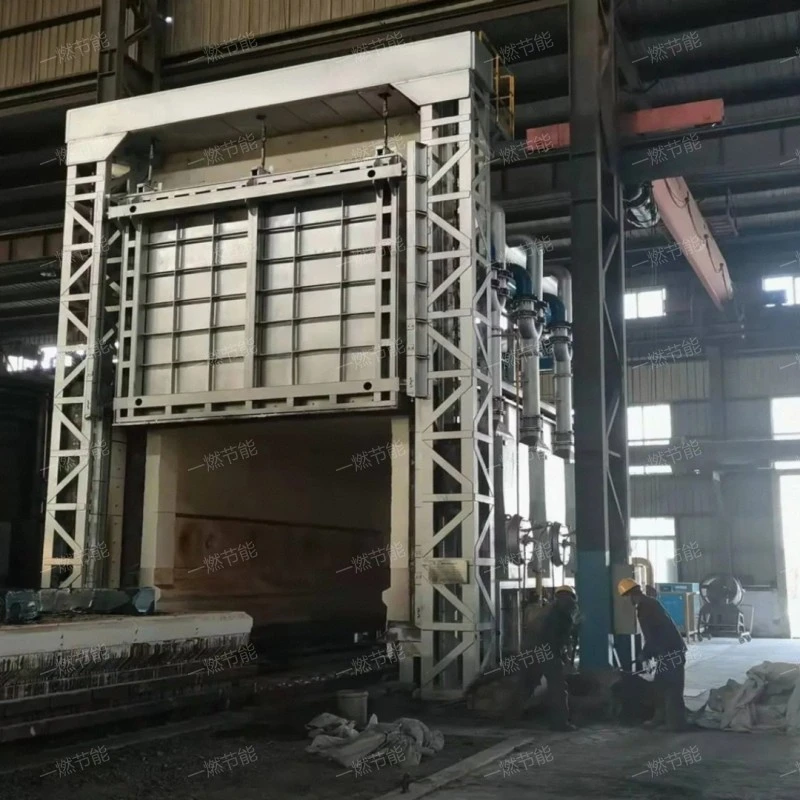

Low temperature trolley heating furnace

As you can see from the live video.，One-combustion energy saving the product looks beautiful.。

5、Advantages of Low temperature trolley heating furnace principle

Low temperature trolley heating furnacethe principle is simple.Heat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.，the main features are Easy to control, Easy to maintain, energy-efficient, Strong adaptability and Easy to control，multifunctional, with functions such as hardening and tempering, heat treatment, quench, normalizing and temper，it mainly includes furnace chamber, Radiation chamber, convection chamber, ventilation system and recovery of waste heat，This productThe structural design is simple, novel and special.，has been favored by more and more customers.。

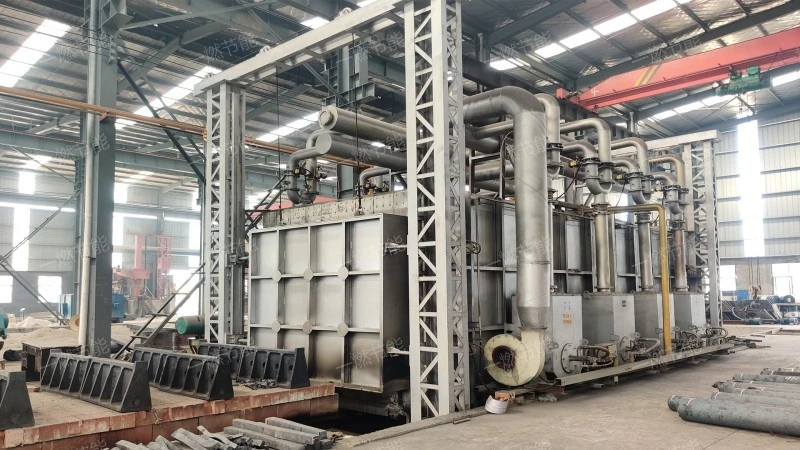

Low temperature trolley heating furnace

6、Structural advantages of Low temperature trolley heating furnace

The Low temperature trolley heating furnace structure is introduced as follows:

1. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

2. Radiation chamber

The heat load of the main place for Low temperature trolley heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

3. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

4. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

5. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

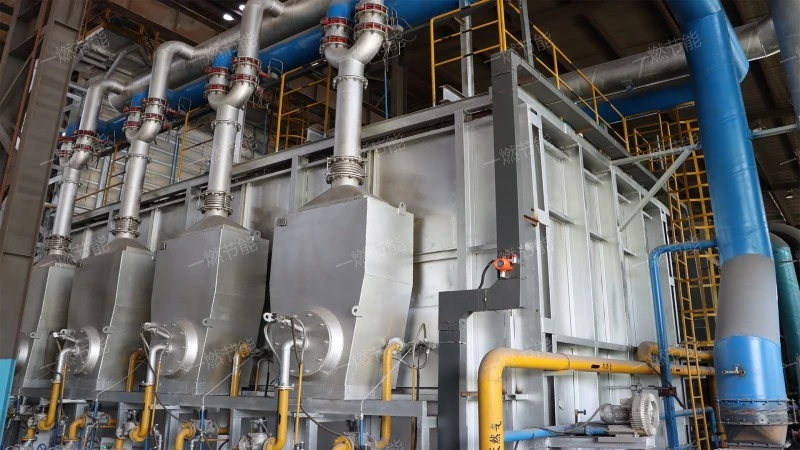

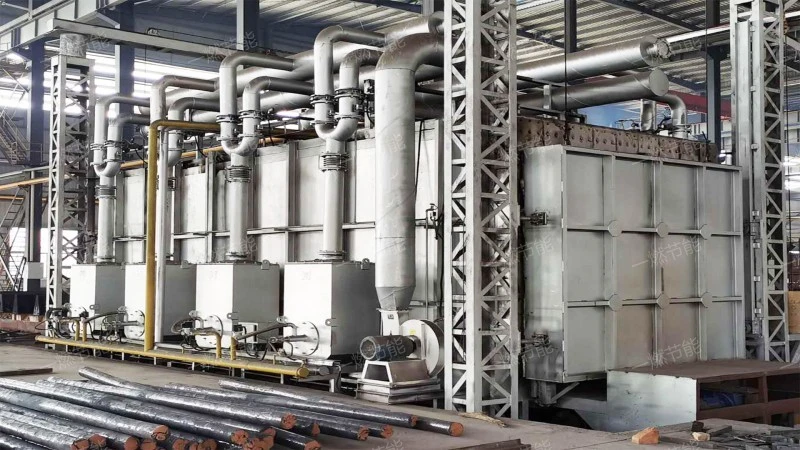

Low temperature trolley heating furnace

Low temperature trolley heating furnaceis a kind of high quality and low price Low temperature trolley heating furnace，usually used in heat treatment, Household necessities, metallurgy, war industry, pharmacy and other fields。
