What is a Through type annealing furnace? forging furnace specifications, models, and parameters

Through type annealing furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，the product looks beautiful.，is designed by One-combustion energy saving with advanced technology。

1、Brief introduction of Through type annealing furnace

Through type annealing furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.。

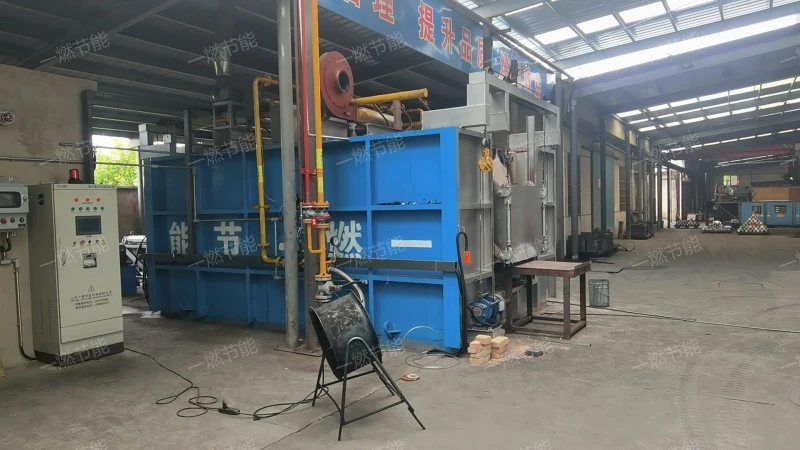

Through type annealing furnace

2、Introduction of Through type annealing furnace characteristics

Through type annealing furnace has the following characteristics

1. Easy to maintain

The structural design of the Through type annealing furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

2. Efficient heating

The Through type annealing furnace can heat the metal to the required forging temperature in a very short time, reducing the loss caused by the oxidation of the metal.

3. Strong adaptability

The Through type annealing furnace is suitable for forging and heating of various metal materials and has a wide range of applications.

4. Easy to control

By adjusting the burner and ventilation system, the temperature and atmosphere in the furnace can be accurately controlled to meet the heating requirements of different metal materials.

5. Stable and reliable

The Through type annealing furnace has a stable combustion system and temperature control system, which can ensure the uniformity and stability of the temperature in the furnace, thus improving the quality and production efficiency of forged products.

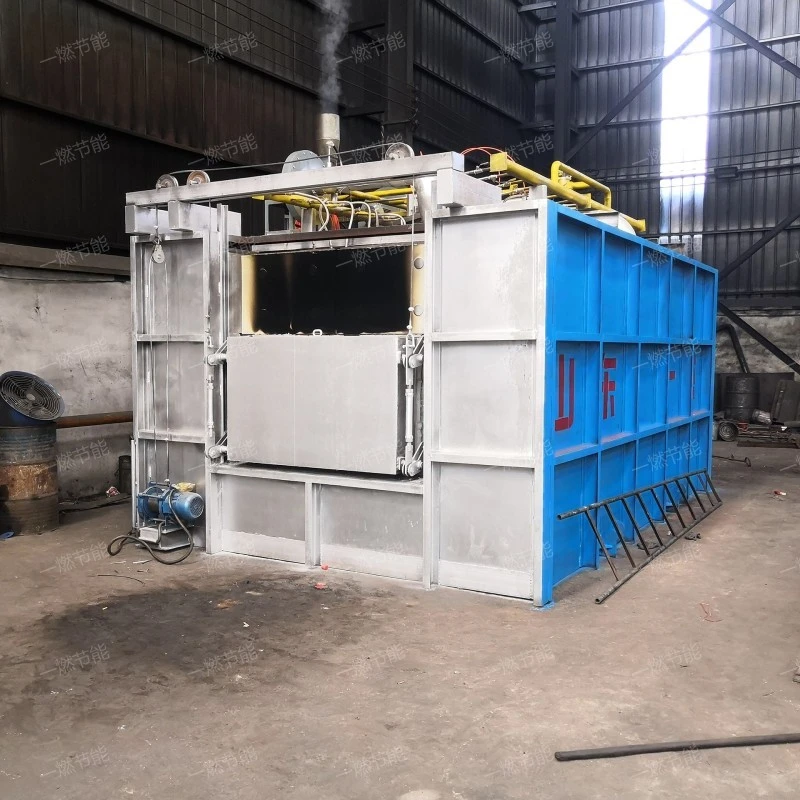

Through type annealing furnace

3、Through type annealing furnace structure composition

The Through type annealing furnace has the following structure

1. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

2. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

3. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

4. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

5. Radiation chamber

The heat load of the main place for Through type annealing furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

Through type annealing furnace

4、Through type annealing furnace function

Through type annealing furnaceit has the functions of heat treatment, anneal, normalizing, temper and anneal，Commonly used inEnergy conservation and environmental protection,Metal heat treatment,Metal melting and casting,Metal tempering,Improve production efficiency and so on，the product looks beautiful.。

Through type annealing furnace

5、Through type annealing furnace principle

Through type annealing furnacethe principle is simple.The high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.，support customization。

Through type annealing furnace

6、Through type annealing furnace explanation video

The following is the live video of Through type annealing furnace designed and produced by One-combustion energy saving for users, from which we can see the Adopting advanced combustion technology and control system can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.、It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.、Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.、The user interface is friendly, and the operator is easy to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.、The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion. of One-combustion energy savingProduction and processing的Through type annealing furnace.。

Through type annealing furnace

As you can see from the live video.，One-combustion energy saving is a kind of high quality and low price Through type annealing furnace。

Through type annealing furnaceIt has a wide range of uses, and is often used inMetal forging heating,Metal melting and casting,Energy conservation and environmental protection,Improve production efficiency,Metal forging heating and so on，It is a kind of equipment which uses gas as fuel and is specially used for heating metal before forging.。
