Introduction to Energy saving chamber heating furnace, forging furnace advantages, characteristics and principles

Energy saving chamber heating furnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.。The following is to introduce the Energy saving chamber heating furnace:

1、Brief introduction of Energy saving chamber heating furnace

Energy saving chamber heating furnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.，is a popular Energy saving chamber heating furnace，is a Energy saving chamber heating furnace newly developed by One-combustion energy saving。

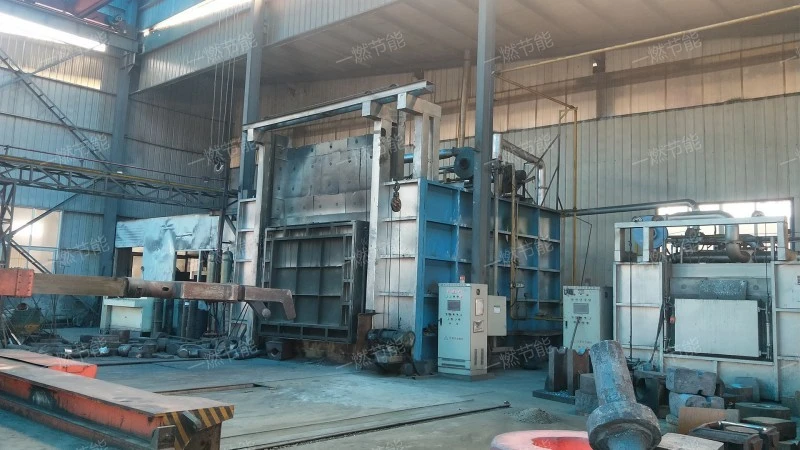

Energy saving chamber heating furnace

2、Structural characteristics of Energy saving chamber heating furnace

The Energy saving chamber heating furnace structure is introduced as follows:

1. Radiation chamber

The heat load of the main place for Energy saving chamber heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

2. furnace chamber

A space for holding metallic materials for heating.

3. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

4. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

5. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

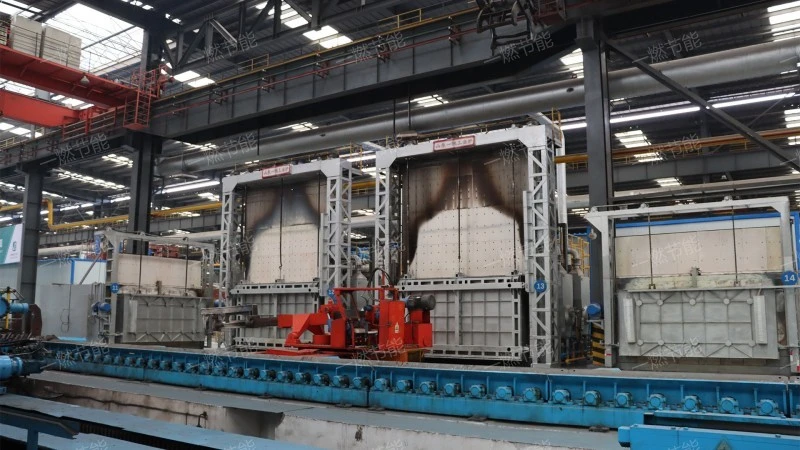

Energy saving chamber heating furnace

3、Energy saving chamber heating furnace performance advantage

The advantages of Energy saving chamber heating furnace are as follows:

1. easy to operate

The operation interface of the Energy saving chamber heating furnace is friendly and easy for operators to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.

2. Improve product quality

Because the Energy saving chamber heating furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

3. Multiple fuel options

Although the Energy saving chamber heating furnace mainly uses natural gas as fuel, some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.

4. Intelligent control

The Energy saving chamber heating furnace is usually equipped with an intelligent control system, which can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.

5. Reduce operating costs

The efficient combustion and waste heat recovery system of the Energy saving chamber heating furnace can significantly reduce energy consumption, thus reducing operating costs.

Energy saving chamber heating furnace

4、Energy saving chamber heating furnace characteristics

The Energy saving chamber heating furnace features are as follows:

1. Efficient heating

The Energy saving chamber heating furnace can heat the metal to the required forging temperature in a very short time, reducing the loss caused by the oxidation of the metal.

2. Strong adaptability

The Energy saving chamber heating furnace is suitable for forging and heating of various metal materials and has a wide range of applications.

3. Stable and reliable

The Energy saving chamber heating furnace has a stable combustion system and temperature control system, which can ensure the uniformity and stability of the temperature in the furnace, thus improving the quality and production efficiency of forged products.

4. Easy to maintain

The structural design of the Energy saving chamber heating furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

5. Efficient heating

The Energy saving chamber heating furnace can heat the metal material to the required temperature in a short time and improve the production efficiency.

Energy saving chamber heating furnace

5、Energy saving chamber heating furnace real shot picture

A high-definition picture list of Energy saving chamber heating furnace is available for our customers to visit. The physical visit can be made to the factory. The address of the visit is Jinan, Shandong province, and the time can be reserved in advance. The manufacturer has a special person to receive it.。

Energy saving chamber heating furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

6、Brief introduction of Energy saving chamber heating furnace

Energy saving chamber heating furnaceIt is a kind of equipment which uses gas as fuel and is specially used for heating metal before forging.，the advantage is Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、Adopting advanced combustion technology and control system can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.、It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.、Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.、Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.，the product looks atmospheric.。

Energy saving chamber heating furnace

Energy saving chamber heating furnaceWidely used in Metal heat treatment, Metal forging heating, Metal melting and casting, Improve production efficiency and Energy conservation and environmental protection，the main structure includes Radiation chamber, combustor, convection chamber, ventilation system and ventilation system，Energy saving chamber heating furnaceThe overall structural design is relatively simple，is a Energy saving chamber heating furnace。
