Introduction to Burner heating furnace double chamber type and forging furnace structure principle

Burner heating furnace double chamber typeIt is a kind of equipment which uses gas as fuel and is specially used for heating metal before forging.，the advantage is Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.、The metal material can be heated to the required temperature in a short time, and the production efficiency is improved.、The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion.、Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.、Natural gas is mainly used as fuel, but some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.，the principle is simple.The high-temperature flame and flue gas generated when fuel (natural gas) burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature.，it is an ideal choice for customers to buy Burner heating furnace double chamber type。The following is to introduce the Burner heating furnace double chamber type:

1、Brief introduction of Burner heating furnace double chamber type

Burner heating furnace double chamber typeIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.，is designed by One-combustion energy saving with advanced technology。

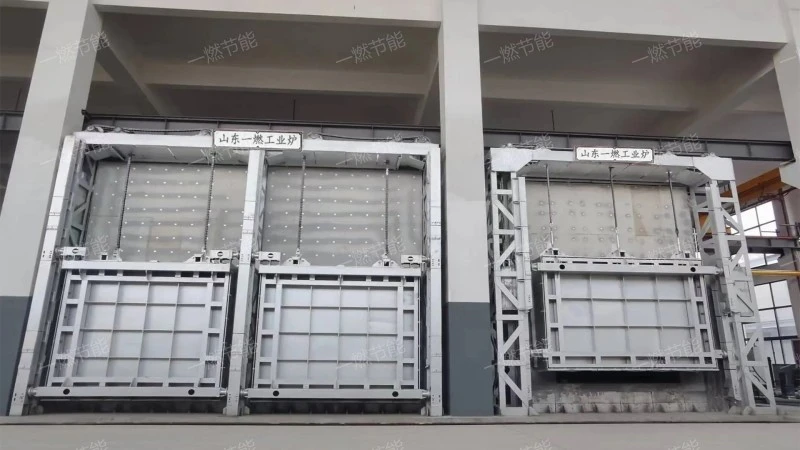

Burner heating furnace double chamber type

2、Video analysis of Burner heating furnace double chamber type

One-combustion energy saving provides customers with on-site high-definition video, fully demonstrates the advantages of on-site productt operation, and helps customers to deeply understand the Burner heating furnace double chamber type production process and production site, and gain favorable comments and recognition from customers.。

Burner heating furnace double chamber type

As you can see from the live video.，Shandong yiran energy-saving environment protection co., ltd at work,The high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.。

3、Burner heating furnace double chamber type application

Burner heating furnace double chamber types have the following purposes.

1. Metal melting and casting

Although it is mainly used for forging heating, some types of Burner heating furnace double chamber types can also be used in metal melting and casting processes. This is especially suitable for melting and casting of small or special alloys.

2. Improve production efficiency

The Burner heating furnace double chamber type has the advantages of fast heating speed and accurate temperature control, which can improve production efficiency. This is especially important for mass-produced forging workshops.

3. Metal heat treatment

In addition to forging heating, Burner heating furnace double chamber types can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

4. Energy conservation and environmental protection

The Burner heating furnace double chamber type uses clean energy as fuel, which has lower emissions and higher energy efficiency than traditional coal-fired or oil-fired stoves. This is helpful to reduce environmental pollution and realize green production.

5. Metal tempering

By properly heating and cooling the metal material, the Burner heating furnace double chamber type can realize the quenching and tempering treatment of the metal. This is helpful to adjust the hardness and toughness of metal to meet the needs of different workpieces.

Burner heating furnace double chamber type

4、Burner heating furnace double chamber type function

Burner heating furnace double chamber typeit has the functions of Casting heating, anneal, temper, heat treatment and normalizing，it is widely used inautomobile,machinery,building materials,Household necessities,chemical industry and other industries，Commonly used inMetal forging heating,Energy conservation and environmental protection,Metal heat treatment,Metal melting and casting,Improve production efficiency and so on。

Burner heating furnace double chamber type

5、Burner heating furnace double chamber type structure composition

The Burner heating furnace double chamber type has the following structure

1. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

2. Radiation chamber

The heat load of the main place for Burner heating furnace double chamber type heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

3. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

4. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

5. furnace chamber

A space for holding metallic materials for heating.

Burner heating furnace double chamber type

6、One-combustion energy saving delivery site

You can buy Burner heating furnace double chamber type according to your needs and show you product videos.。

Burner heating furnace double chamber type

As you can see from the live video.One-combustion energy saving the product looks beautiful.。

Burner heating furnace double chamber typeThe structural design is simple, novel and special.，it is usually composed of combustor, ventilation system, furnace chamber, recovery of waste heat and Radiation chamber，It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.、Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.、Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、Adopting advanced combustion technology and materials, it has a long service life and low maintenance cost.、Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.，Widely used in Metal melting and casting, Energy conservation and environmental protection, Metal heat treatment, Metal tempering and Metal tempering。
