What is a Long bar material heating furnace? Introduction to the advantages and characteristics of Forging furnace functions

Long bar material heating furnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.，the product looks atmospheric.，The overall structural design is relatively simple and compact.，it has the structure of recovery of waste heat, convection chamber, ventilation system, furnace chamber and furnace chamber，at the start of the operation,The high-temperature flame and flue gas generated when fuel (natural gas) burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature.，modern technology，The price is more affordable。The following is to introduce the Long bar material heating furnace:

1、Brief introduction of Long bar material heating furnace

Long bar material heating furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，is a Long bar material heating furnace，it has the functions of quench, temper, anneal, hardening and tempering and heat treatment。

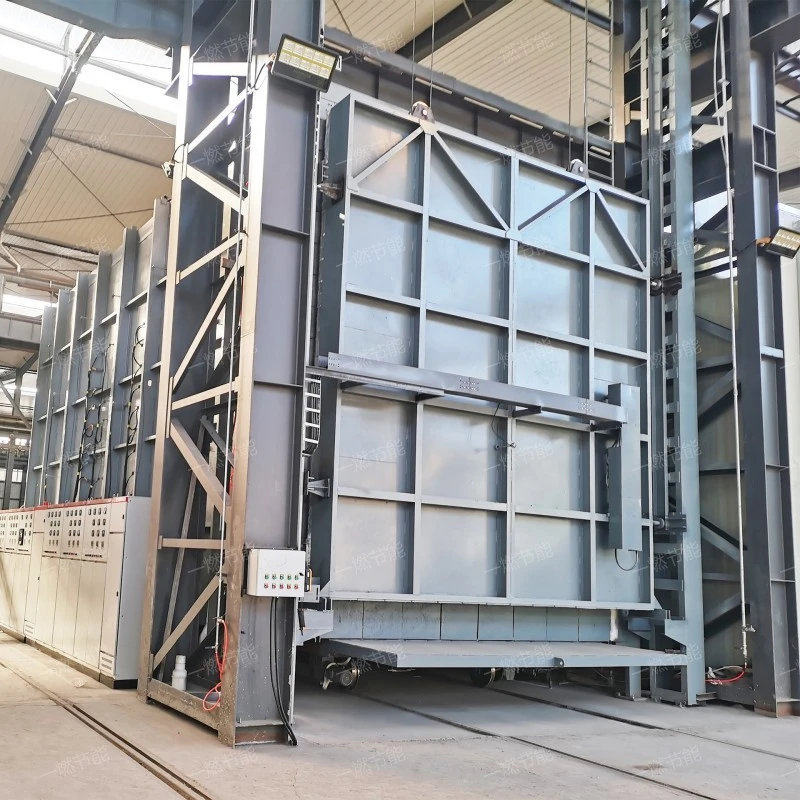

Long bar material heating furnace

2、Long bar material heating furnace function

Long bar material heating furnacemultifunctional, with functions such as normalizing, anneal, Forging heating, quench and hardening and tempering，it has been widely used in heat treatment, Machinery manufacturing, material, aerospace, light industry and other industries，the advantage is The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion.、Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.、Uniform heating and precise control can be realized, so it is helpful to improve the product quality and yield of metal materials.、Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.、Natural gas is mainly used as fuel, but some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.。

Long bar material heating furnace

3、Long bar material heating furnace structure composition

The Long bar material heating furnace structure is introduced as follows:

1. furnace chamber

A space for holding metallic materials for heating.

2. furnace chamber

A space for holding metallic materials for heating.

3. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

4. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

5. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

Long bar material heating furnace

4、Long bar material heating furnace performance advantage

The advantages of Long bar material heating furnace are as follows:

1. Reduce operating costs

The efficient combustion and waste heat recovery system of the Long bar material heating furnace can significantly reduce energy consumption, thus reducing operating costs.

2. Intelligent control

The Long bar material heating furnace is usually equipped with an intelligent control system, which can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.

3. Wide application range

The Long bar material heating furnace is suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.

4. Wide application range

The Long bar material heating furnace is suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.

5. Improve product quality

Because the Long bar material heating furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

Long bar material heating furnace

5、Working principle of Long bar material heating furnace

Long bar material heating furnaceHeat of combustion based on fuel. Fuel gas (such as natural gas, liquefied petroleum gas, etc.) is mixed with combustion-supporting air through the burner and burned to produce high-temperature flame and flue gas. These high-temperature flames and smoke exchange heat with metal materials in the furnace, so that they gradually heat up to the temperature required for forging.，it has the characteristics of Easy to control, Stable and reliable, Easy to maintain, Strong adaptability and energy-efficient，It can be used for Metal melting and casting, Metal tempering, Metal heat treatment, Improve production efficiency, Energy conservation and environmental protection, Metal heat treatment and so on。

Long bar material heating furnace

6、Structural characteristics of Long bar material heating furnace

The Long bar material heating furnace structure is introduced as follows:

1. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

2. Radiation chamber

The heat load of the main place for Long bar material heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

3. furnace chamber

A space for holding metallic materials for heating.

4. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

5. Waste heat recovery system

Recover the waste heat in the exhaust gas of heating furnace to improve the energy utilization efficiency.

Long bar material heating furnace

Long bar material heating furnacethe principle is simple.The high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.，generally, it is composed of Radiation chamber, recovery of waste heat, ventilation system, combustor, ventilation system and other major components，it has the functions of Casting heating, temper, heat treatment, temper and quench。
