Introduction to High manganese steel trolley furnace, Forging furnace specifications, model parameters

High manganese steel trolley furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.。

1、Brief introduction of High manganese steel trolley furnace

High manganese steel trolley furnaceIt is a kind of equipment which uses gas as fuel and is specially used for heating metal before forging.，The high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.，is a High manganese steel trolley furnace，it is an ideal choice for customers to buy High manganese steel trolley furnace。

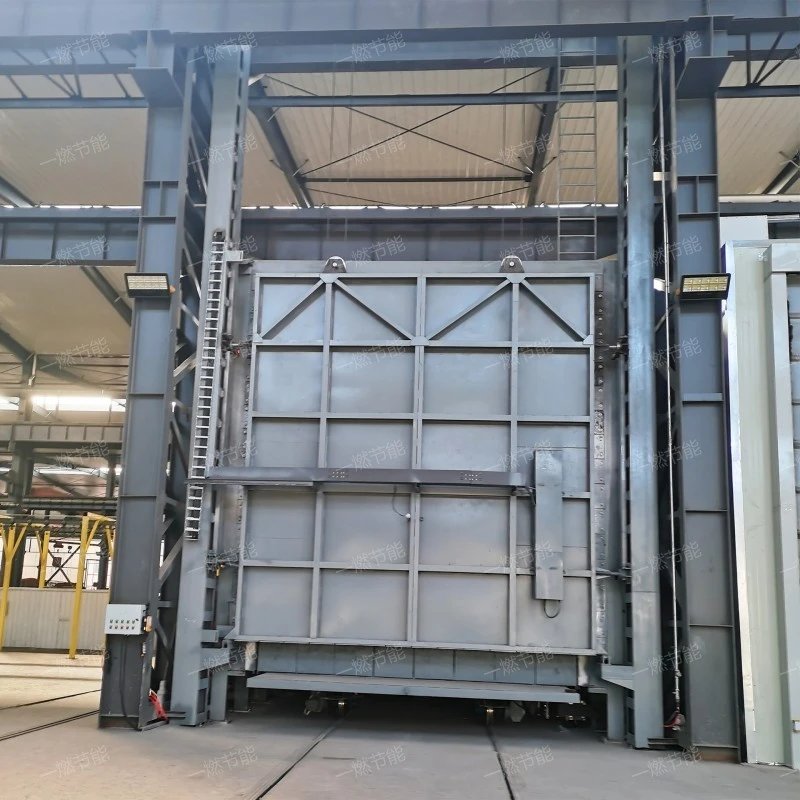

High manganese steel trolley furnace

2、Structural characteristics of High manganese steel trolley furnace

The High manganese steel trolley furnace has the following structure

1. Radiation chamber

The heat load of the main place for High manganese steel trolley furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

2. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

3. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

4. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

5. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

High manganese steel trolley furnace

3、High manganese steel trolley furnace performance advantage

High manganese steel trolley furnaces have the following advantages.

1. easy to operate

The operation interface of the High manganese steel trolley furnace is friendly and easy for operators to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.

2. Reduce operating costs

The efficient combustion and waste heat recovery system of the High manganese steel trolley furnace can significantly reduce energy consumption, thus reducing operating costs.

3. Wide application range

The High manganese steel trolley furnace is suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.

4. Efficient combustion

The High manganese steel trolley furnace adopts advanced combustion technology and control system, which can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.

5. Improve product quality

Because the High manganese steel trolley furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

High manganese steel trolley furnace

4、Introduction of High manganese steel trolley furnace characteristics

High manganese steel trolley furnace has the following characteristics

1. Easy to maintain

The structural design of the High manganese steel trolley furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

2. Efficient heating

The High manganese steel trolley furnace can heat the metal material to the required temperature in a short time and improve the production efficiency.

3. Easy to maintain

The structural design of the High manganese steel trolley furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

4. energy saving and environmental protection

As a clean energy source, natural gas produces less pollutants after combustion, which is beneficial to environmental protection. At the same time, the application of waste heat recovery system further improves the energy utilization efficiency.

5. Strong adaptability

The High manganese steel trolley furnace can be used for forging and heating of bar, round steel, square steel, steel plate and other metal materials, and has a wide range of applications.

High manganese steel trolley furnace

5、High manganese steel trolley furnace application

High manganese steel trolley furnaces have the following purposes.

1. Metal melting and casting

Although it is mainly used for forging heating, some types of High manganese steel trolley furnaces can also be used in metal melting and casting processes. This is especially suitable for melting and casting of small or special alloys.

2. Metal tempering

By properly heating and cooling the metal material, the High manganese steel trolley furnace can realize the quenching and tempering treatment of the metal. This is helpful to adjust the hardness and toughness of metal to meet the needs of different workpieces.

3. Metal heat treatment

In addition to forging heating, High manganese steel trolley furnaces can also be used for metal heat treatment processes, such as annealing and tempering. These processes can improve the microstructure and properties of metal materials, and improve their service life and mechanical properties.

4. Metal forging heating

The High manganese steel trolley furnace can heat the metal material to the temperature required for forging, improve its plasticity and fluidity, and thus facilitate forging. This is very important for the forging of various metal materials.

5. Metal melting and casting

Although it is mainly used for forging heating, some types of High manganese steel trolley furnaces can also be used in metal melting and casting processes. This is especially suitable for melting and casting of small or special alloys.

High manganese steel trolley furnace

6、High manganese steel trolley furnace video live broadcast

The following is the live video of High manganese steel trolley furnace designed and produced by One-combustion energy saving for users, from which we can see the The metal material can be heated to the required temperature in a short time, and the production efficiency is improved.、Adopting advanced combustion technology and materials, it has a long service life and low maintenance cost.、Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.、Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.、It has the advantages of high heating efficiency, high energy utilization, accurate temperature control, good environmental protection performance, simple operation and strong adaptability. of One-combustion energy savingProduction and processing的High manganese steel trolley furnace.。

High manganese steel trolley furnace

As you can see from the live video.，Shandong yiran energy-saving environment protection co., ltd It can be used for Improve production efficiency, Energy conservation and environmental protection, Metal heat treatment, Improve production efficiency, Metal forging heating, Energy conservation and environmental protection and so on。

High manganese steel trolley furnaceis a common High manganese steel trolley furnace，the advantage is Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、Adopting advanced combustion technology and control system can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.、The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion.、Adopting advanced combustion technology and materials, it has a long service life and low maintenance cost.、Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.。
