Introduction to Split type well type heat treatment furnace and forging furnace structure principle

Split type well type heat treatment furnaceIt is a forging heating device using gas as fuel.。

1、Brief introduction of Split type well type heat treatment furnace

Split type well type heat treatment furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，be loved by our customers.。

Split type well type heat treatment furnace

2、Split type well type heat treatment furnace function

Split type well type heat treatment furnacemultifunctional, with functions such as quench, hardening and tempering, heat treatment, normalizing and anneal，is designed by One-combustion energy saving with advanced technology。

Split type well type heat treatment furnace

3、Functional advantages of Split type well type heat treatment furnace

Split type well type heat treatment furnaces have the following advantages.

1. Extend the service life of equipment

The Split type well type heat treatment furnace adopts advanced combustion technology and materials, which has a long service life and low maintenance cost.

2. clean energy

Natural gas, as a clean energy source, produces less waste gas and dust after combustion, which has little pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.

3. Improve product quality

Because the Split type well type heat treatment furnace can realize uniform heating and precise control, it is helpful to improve the product quality and yield of metal materials.

4. Efficient combustion

The Split type well type heat treatment furnace adopts advanced combustion technology and control system, which can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.

5. Multiple fuel options

Although the Split type well type heat treatment furnace mainly uses natural gas as fuel, some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.

Split type well type heat treatment furnace

4、Structural advantages of Split type well type heat treatment furnace

The Split type well type heat treatment furnace has the following structure

1. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

2. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

3. Radiation chamber

The heat load of the main place for Split type well type heat treatment furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

4. furnace chamber

A space for holding metallic materials for heating.

5. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

Split type well type heat treatment furnace

5、Split type well type heat treatment furnace real beat

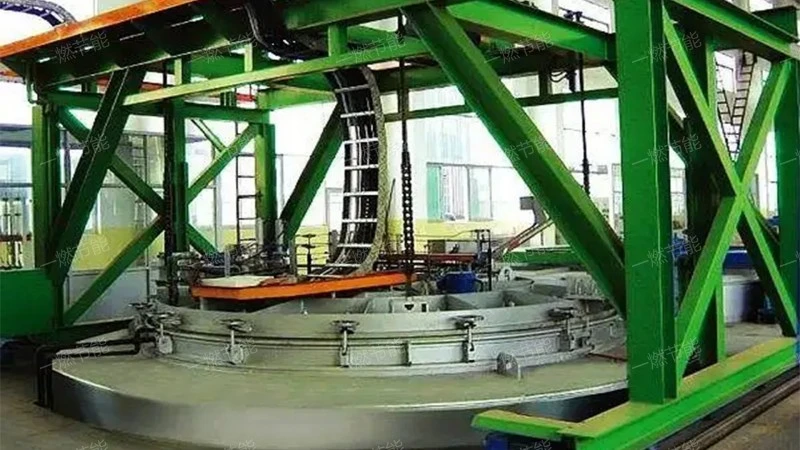

The Split type well type heat treatment furnace looks beautiful and atmospheric, and it is realistic for customers to visit.。

Split type well type heat treatment furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

6、Split type well type heat treatment furnace HD picture real shot

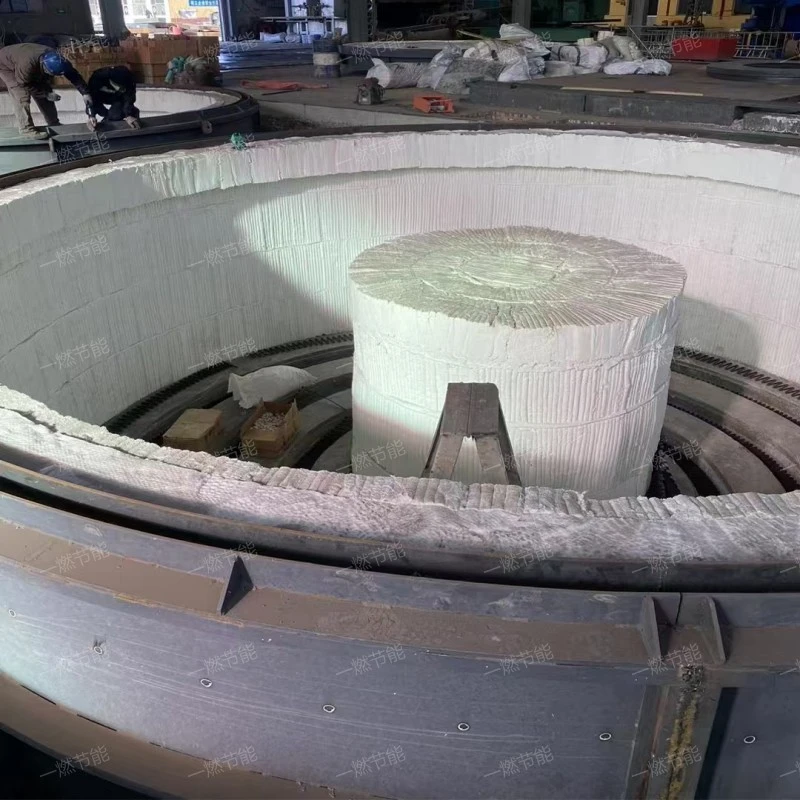

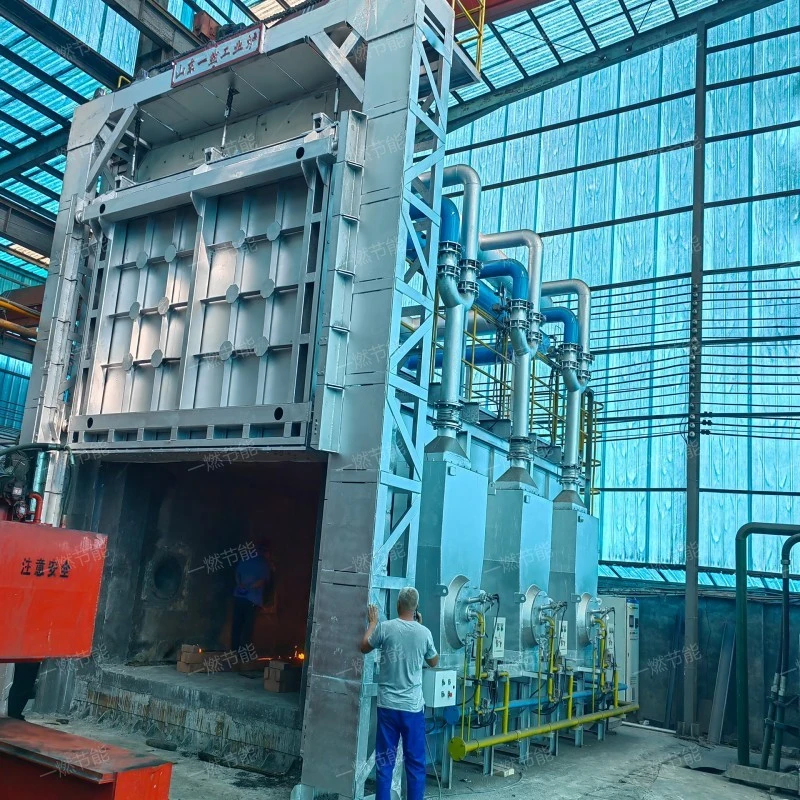

The finished products of the Split type well type heat treatment furnace factory are actually photographed, and all kinds of specifications and models are photographed in all directions. The design is exquisite and the quality is reliable. Don't forget to make an appointment to visit the factory by phone.。

Split type well type heat treatment furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

Split type well type heat treatment furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，at work,Heat of combustion based on fuel. Fuel gas (such as natural gas, liquefied petroleum gas, etc.) is mixed with combustion-supporting air through the burner and burned to produce high-temperature flame and flue gas. These high-temperature flames and smoke exchange heat with metal materials in the furnace, so that they gradually heat up to the temperature required for forging.，the product looks atmospheric.。
