Introduction to Automatic temperature control tube heating furnace and Forging furnace structure principle

Automatic temperature control tube heating furnaceIt is a kind of equipment which uses gas as fuel and is specially used for heating metal before forging.。

1、Brief introduction of Automatic temperature control tube heating furnace

Automatic temperature control tube heating furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.、It has the advantages of high heating efficiency, high energy utilization, accurate temperature control, good environmental protection performance, simple operation and strong adaptability.、Using regenerative combustion system or advanced burner design can realize the uniform distribution of temperature in the furnace, ensure the uniform heating of metal materials and improve product quality.、Adopting advanced combustion technology and control system can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.、Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.，it is widely used inpetroleum,electron,chemical industry,building materials,automobile and other industries，at work,Heat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.，can be customized according to user's needs.。

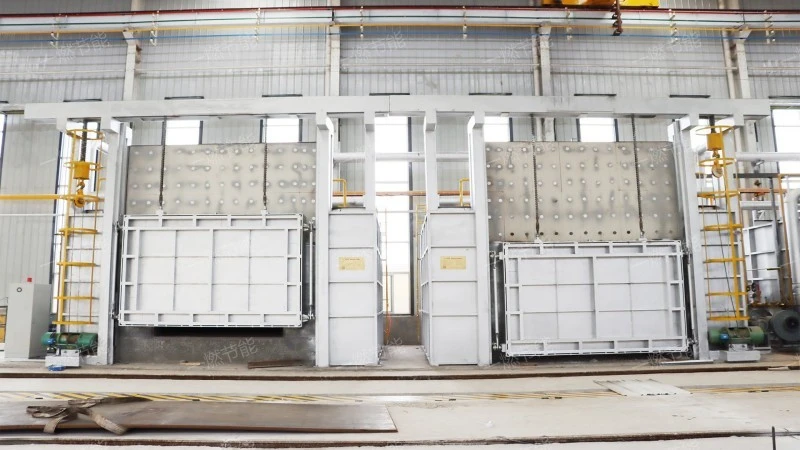

Automatic temperature control tube heating furnace

2、Introduction of advantages of Automatic temperature control tube heating furnace

The advantages of Automatic temperature control tube heating furnace are as follows:

1. Wide application range

The Automatic temperature control tube heating furnace is suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.

2. Uniform heating

The Automatic temperature control tube heating furnace adopts regenerative combustion system or advanced burner design, which can realize uniform distribution of temperature in the furnace, ensure uniform heating of metal materials and improve product quality.

3. clean energy

Natural gas, as a clean energy source, produces less waste gas and dust after combustion, which has little pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.

4. Intelligent control

The Automatic temperature control tube heating furnace is usually equipped with an intelligent control system, which can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.

5. Rapid temperature rise

The Automatic temperature control tube heating furnace can heat the metal material to the required temperature in a short time, which improves the production efficiency.

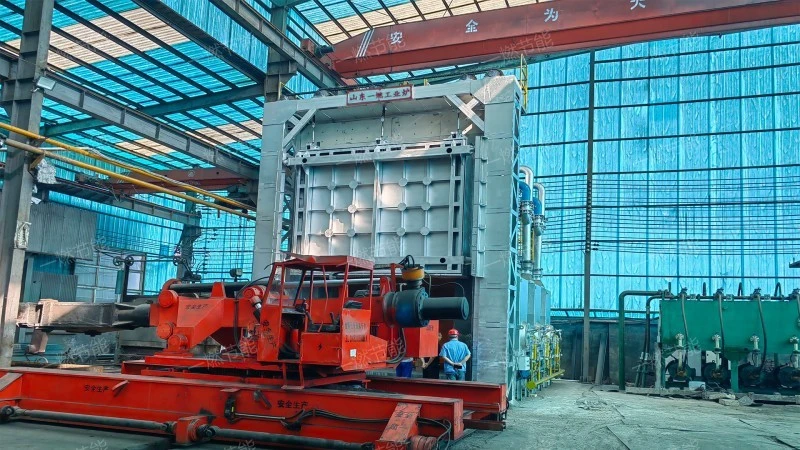

Automatic temperature control tube heating furnace

3、Structural characteristics of Automatic temperature control tube heating furnace

The Automatic temperature control tube heating furnace structure is introduced as follows:

1. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

2. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

3. furnace chamber

A space for holding metallic materials for heating.

4. Radiation chamber

The heat load of the main place for Automatic temperature control tube heating furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

5. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

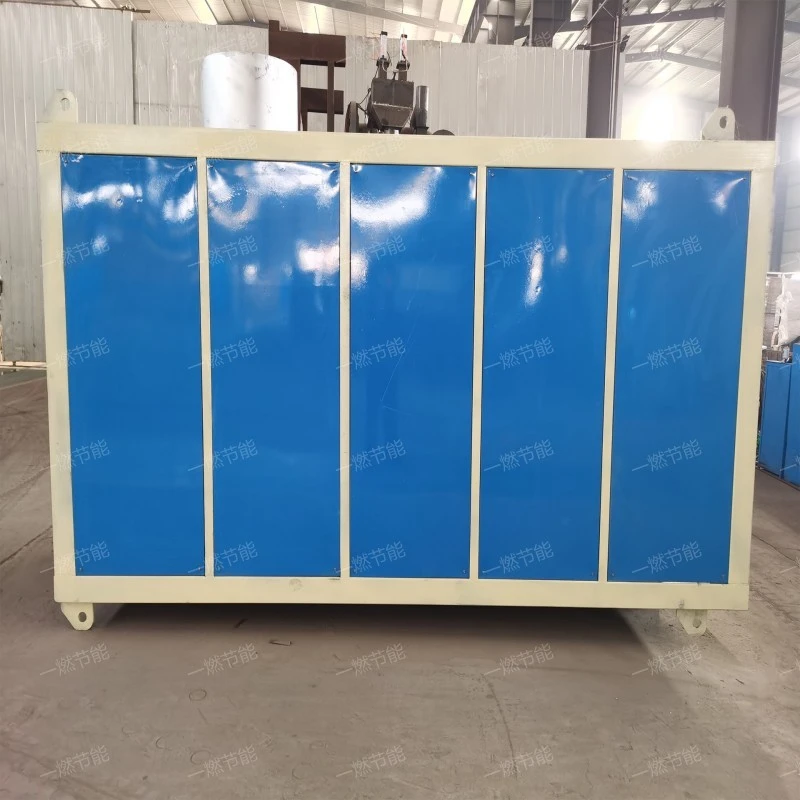

Automatic temperature control tube heating furnace

4、Automatic temperature control tube heating furnace function

Automatic temperature control tube heating furnaceit has the functions of Forging heating, hardening and tempering, anneal, temper and heat treatment，the main structure includes convection chamber, Radiation chamber, recovery of waste heat, ventilation system, combustor and so on，it has the characteristics of Stable and reliable, energy saving and environmental protection, energy saving and environmental protection, energy-efficient and Strong adaptability，widely used in shipping, pharmacy, Household necessities, light industry, war industry and other fields，the advantage is It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.、Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.、Natural gas is mainly used as fuel, but some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.、Adopting advanced combustion technology and materials, it has a long service life and low maintenance cost.、Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.。

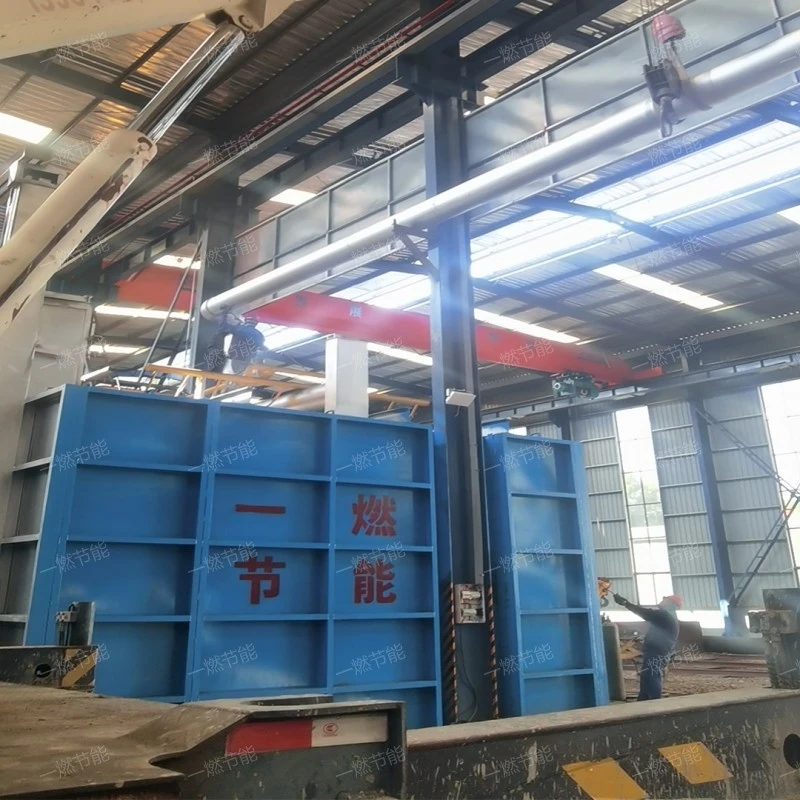

Automatic temperature control tube heating furnace

5、Automatic temperature control tube heating furnace characteristics

The Automatic temperature control tube heating furnace features are as follows:

1. Strong adaptability

The Automatic temperature control tube heating furnace is suitable for forging and heating of various metal materials and has a wide range of applications.

2. Stable and reliable

The Automatic temperature control tube heating furnace has a stable combustion system and temperature control system, which can ensure the uniformity and stability of the temperature in the furnace, thus improving the quality and production efficiency of forged products.

3. Efficient heating

The Automatic temperature control tube heating furnace can heat the metal to the required forging temperature in a very short time, reducing the loss caused by the oxidation of the metal.

4. Easy to maintain

The structural design of the Automatic temperature control tube heating furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

5. energy saving and environmental protection

As a clean energy source, natural gas produces less pollutants after combustion, which is beneficial to environmental protection. At the same time, the application of waste heat recovery system further improves the energy utilization efficiency.

Automatic temperature control tube heating furnace

6、company introduction

One-combustion energy saving has many years of experience in Automatic temperature control tube heating furnace production, and is a professional Automatic temperature control tube heating furnace manufacturer. With favorable Automatic temperature control tube heating furnace price, stable product quality, rich product series and perfect after-sales service system, the company strives to become an advanced Automatic temperature control tube heating furnace manufacturer in Jinan, Shandong province.。

One-combustion energy saving

Automatic temperature control tube heating furnaceat runtime,The high-temperature flame and flue gas generated when the fuel burns in the furnace are used as heat sources to heat the medium flowing in the tube to reach the specified process temperature. Fuel is ejected from the burner and burned, resulting in high-temperature flame and high-temperature flue gas. The high-temperature flame transfers heat to the furnace tube in the radiation chamber through radiation, and then to the medium in the furnace tube. The high-temperature flue gas enters the convection chamber of the heating furnace upward due to the suction force of the chimney or the action of the induced draft fan, and the heat is transferred to the furnace tube in the convection chamber by convection, and then to the medium in the furnace tube.，the main features are Stable and reliable, Easy to maintain, Easy to control, Strong adaptability and energy-efficient。
