Introduction to Heat treatment tube type roasting furnace, introduction to Forging furnace advantages and characteristics

Heat treatment tube type roasting furnaceIt is a kind of heating equipment using natural gas as fuel, which is mainly used to heat metal materials to the required forging temperature in a short time.，is carefully developed by One-combustion energy saving combined with advanced technology。

1、Brief introduction of Heat treatment tube type roasting furnace

Heat treatment tube type roasting furnaceIt is an efficient, energy-saving and environment-friendly metal heating device.，The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion.、Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes.、It can improve the plasticity and fluidity of metal materials, reduce the difficulty and cost of forging, and improve product quality and production efficiency.、Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、Natural gas is mainly used as fuel, but some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.，The price is more affordable。

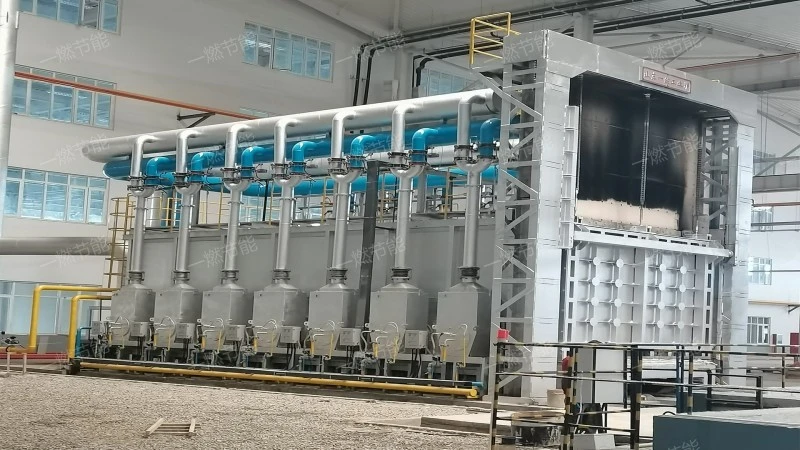

Heat treatment tube type roasting furnace

2、Structural characteristics of Heat treatment tube type roasting furnace

The Heat treatment tube type roasting furnace structure is introduced as follows:

1. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

2. ventilation system

Ensure the gas flow in the furnace and maintain the stability of the atmosphere and temperature in the furnace.

3. convection chamber

The material is heated by convection heat transfer of high temperature flue gas discharged from the radiation chamber. Flue gas washes the tube wall of the furnace tube at a high speed to carry out effective convection heat transfer, and its heat load accounts for about 20%-30% of the whole furnace. The convection chamber is generally arranged above the radiation chamber, and some are placed on the ground alone. In order to improve the heat transfer effect, nail head tubes or finned tubes are often used in furnace tubes.

4. furnace chamber

A space for holding metallic materials for heating.

5. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

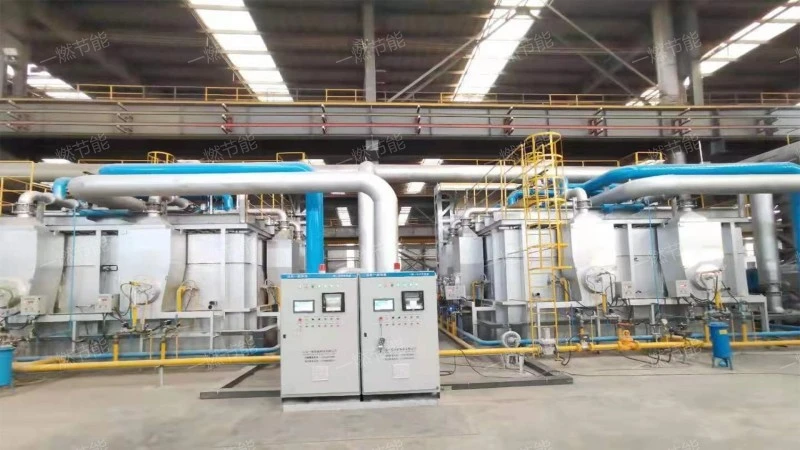

Heat treatment tube type roasting furnace

3、Heat treatment tube type roasting furnace HD picture

Beautiful design, excellent material selection and excellent quality.。

Heat treatment tube type roasting furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

4、Heat treatment tube type roasting furnace advantage

The advantages of Heat treatment tube type roasting furnace are as follows:

1. Multiple fuel options

Although the Heat treatment tube type roasting furnace mainly uses natural gas as fuel, some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.

2. clean energy

Natural gas, as a clean energy source, produces less waste gas and dust after combustion, which has little pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.

3. Efficient combustion

The Heat treatment tube type roasting furnace adopts advanced combustion technology and control system, which can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency.

4. Intelligent control

The Heat treatment tube type roasting furnace is usually equipped with an intelligent control system, which can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.

5. easy to operate

The operation interface of the Heat treatment tube type roasting furnace is friendly and easy for operators to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.

Heat treatment tube type roasting furnace

5、Heat treatment tube type roasting furnace field real shot

The following is the live video of Heat treatment tube type roasting furnace designed and produced by One-combustion energy saving for users, from which we can see the the advantage is The user interface is friendly, and the operator is easy to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.、Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.、The metal material can be heated to the required temperature in a short time, and the production efficiency is improved.、Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.、Adopting advanced combustion technology and control system can realize full combustion of natural gas and improve combustion efficiency. At the same time, some equipment is also equipped with waste heat recovery system, which can further recycle the waste heat in exhaust smoke and improve energy utilization efficiency. of One-combustion energy savingproduce的Heat treatment tube type roasting furnace.。

Heat treatment tube type roasting furnace

As you can see from the live video.，Shandong yiran energy-saving environment protection co., ltd Heat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.。

6、One-combustion energy saving company service

One-combustion energy saving Heat treatment tube type roasting furnace has been widely loved by users since it went on the market. Factory services include three aspects: pre-sale, in-sale and after-sale. Each stage is closely connected with each other, sincerely serving each customer, focusing on the production needs of customers, providing customers with product knowledge training, regularly repairing products for customers, etc., which has been appreciated by our customers.。

One-combustion energy saving

Heat treatment tube type roasting furnaceIt is a kind of equipment which uses gas as fuel and is specially used for heating metal before forging.，Strong adaptability,Easy to maintain,Easy to control,energy-efficient,energy saving and environmental protection。
