Introduction to Continuous Annealing Heating Furnace, advantages, characteristics and principles of heating furnace

Continuous Annealing Heating FurnaceIt is a kind of equipment that uses natural gas as fuel to heat metal materials and make them reach forging temperature.，it is widely used inlight industry,heat treatment,building materials,shipping,material and other industries，it is an ideal choice for customers to buy Continuous Annealing Heating Furnace。The following is to introduce the Continuous Annealing Heating Furnace:

1、Brief introduction of Continuous Annealing Heating Furnace

Continuous Annealing Heating FurnaceIt is an important heating equipment before metal forging. It uses natural gas as fuel to heat metal materials through high-temperature flame and smoke generated by combustion to meet the requirements of forging process.，is a common Continuous Annealing Heating Furnace，energy saving and environmental protection,Stable and reliable,Strong adaptability,energy-efficient,energy saving and environmental protection。

Continuous Annealing Heating Furnace

2、Continuous Annealing Heating Furnace structure composition

The Continuous Annealing Heating Furnace has the following structure

1. Waste heat recovery system

Used to recover the exhaust heat of the heating furnace. There are two kinds of recovery methods, one is to recover by preheating combustion air, so that the recovered heat can return to the furnace again; The other is to use another recovery system to recover heat. The former is called air preheating mode, and the latter is usually called waste heat boiler mode.

2. combustor

The device that mixes natural gas with combustion-supporting air and ejects it is the core component of the heating furnace.

3. convection chamber

The high-temperature flue gas discharged from the radiation chamber is used for convective heat transfer to further heat the metal materials.

4. furnace chamber

A space for holding metallic materials for heating.

5. Radiation chamber

The heat load of the main place for Continuous Annealing Heating Furnace heat exchange accounts for about 70%-80% of the whole furnace. The furnace tube in the radiation room conducts heat through flame or high-temperature flue gas, which is mainly radiant heat, so it is called radiation tube.

Continuous Annealing Heating Furnace

3、Introduction of Continuous Annealing Heating Furnace characteristics

Continuous Annealing Heating Furnace has the following characteristics

1. Stable and reliable

The Continuous Annealing Heating Furnace has a stable combustion system and temperature control system, which can ensure the uniformity and stability of the temperature in the furnace, thus improving the quality and production efficiency of forged products.

2. Easy to control

The combustion system and ventilation system of the Continuous Annealing Heating Furnace can be adjusted as required to accurately control the temperature and atmosphere in the furnace and meet the heating requirements of different metal materials.

3. energy saving and environmental protection

Natural gas is a kind of clean energy, which produces less waste gas and waste smoke after combustion and has little environmental pollution. At the same time, through wall regenerative combustion technology, flue gas waste heat recovery system and other technical means, the Continuous Annealing Heating Furnace further improves energy utilization efficiency and reduces energy consumption and emissions.

4. Efficient heating

The Continuous Annealing Heating Furnace can heat the metal material to the required temperature in a short time and improve the production efficiency.

5. Easy to maintain

The structural design of the Continuous Annealing Heating Furnace is reasonable and easy to maintain, which reduces the operating cost and failure rate of the equipment.

Continuous Annealing Heating Furnace

4、Continuous Annealing Heating Furnace real beat

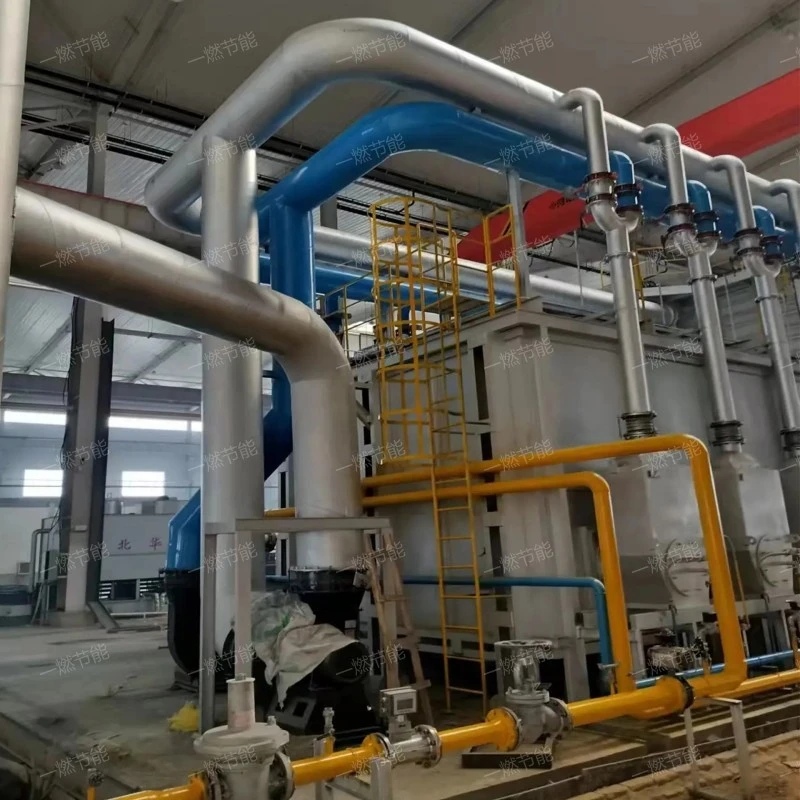

Continuous Annealing Heating Furnace have various specifications and models, which can meet the diverse needs of users. The following are high-definition real pictures, which are exquisite in workmanship and trustworthy.。

Continuous Annealing Heating Furnace

Note: All the pictures in this article were taken by One-combustion energy saving manufacturer.。

5、Continuous Annealing Heating Furnace video live broadcast

The following is the live video of Continuous Annealing Heating Furnace designed and produced by One-combustion energy saving for users, from which we can see the Efficient combustion and waste heat recovery system can significantly reduce energy consumption, thus reducing operating costs.、Natural gas is used as a heat source, resulting in less waste gas and smoke after combustion, and less pollution to the environment. This will help reduce industrial emissions and improve the atmospheric environment.、Usually equipped with intelligent control system, it can automatically adjust the parameters such as gas supply and air flow according to the heating demand, and realize accurate control of the temperature and atmosphere in the furnace.、Natural gas is mainly used as fuel, but some equipment also supports other types of gas or liquid fuel, which has strong fuel adaptability.、Suitable for forging and heating of various metal materials, including steel, aluminum and copper. At the same time, it can also be used in metal heat treatment, tempering and other technological processes. of One-combustion energy savingproduction-manufacturing的Continuous Annealing Heating Furnace.。

Continuous Annealing Heating Furnace

As you can see from the live video.，Shandong yiran energy-saving environment protection co., ltd the advantage is The metal material can be heated to the required temperature in a short time, and the production efficiency is improved.、The user interface is friendly, and the operator is easy to use. At the same time, the equipment also has the function of fault diagnosis and alarm, which can find and deal with abnormal situations in time.、Adopting advanced combustion technology and materials, it has a long service life and low maintenance cost.、It has the advantages of high heating efficiency, high energy utilization, accurate temperature control, good environmental protection performance, simple operation and strong adaptability.、The use of clean and environmentally friendly natural gas as fuel effectively avoids the adverse effects of chemical reactions between impurities such as coal-fired furnaces and forgings during heating. At the same time, natural gas has high calorific value and high combustion temperature, and the combustion temperature can be further increased by preheating air and fuel. In addition, the gas forging heating furnace also has good heat loss control ability and intelligent control system, which can accurately adjust the ratio of air to natural gas, ensure full combustion of natural gas, and reduce mechanical incomplete combustion and chemical incomplete combustion.。

Continuous Annealing Heating Furnacethe main features are Stable and reliable, Easy to maintain, Easy to control, Strong adaptability and energy-efficient，at the start of the operation,Heat of combustion based on fuel. Natural gas is sprayed from the burner, mixed with combustion-supporting air and burned to produce high-temperature flame and smoke. These high-temperature flames and smoke transfer heat to the metal materials in the furnace by radiation and convection, so that they gradually heat up to the temperature required for forging.，multifunctional, with functions such as temper, heat treatment, Casting heating, anneal and normalizing。
